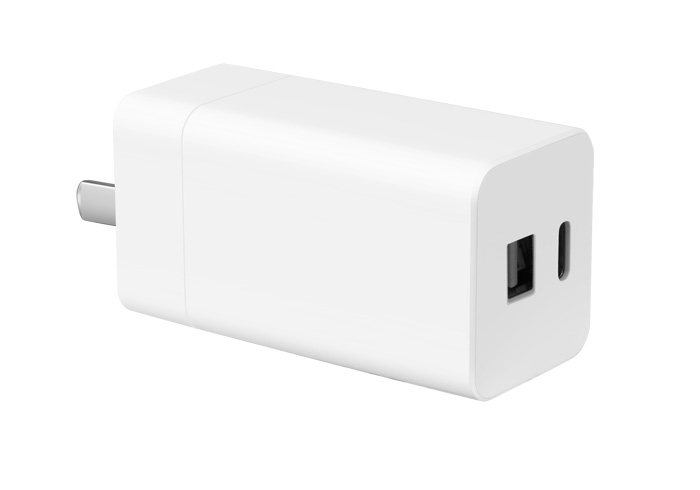

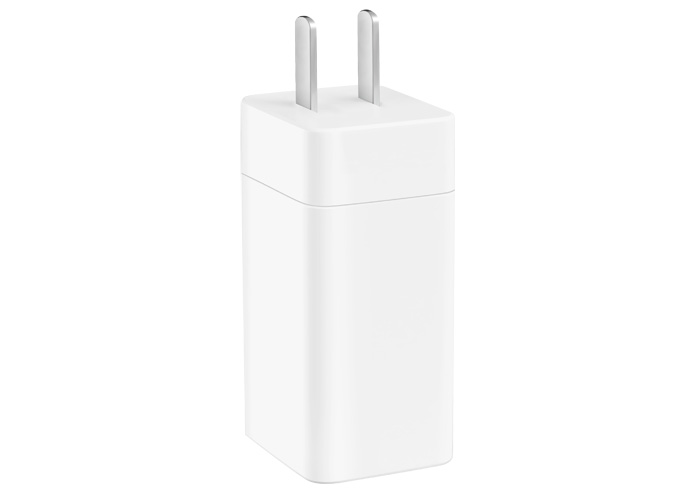

GaN02

GaN fast charger

US/EU/CN plug available

Support multiple protocols QC,AFC,FCP,MTK PE+2.0, PD3,PD2.......

Product Details

Model: GaN02

GaN Fast Charger

US/EU/CN plug available


Feature:

1.  Two output interfaces : USB-A & USB-C

2.   Support QC,AFC,FCP,MTK PE+2.0, PD and other multiple fast charging protocols.

3.   USB-C port: 65W max

4.  Compatible with various brands of equipment ,charge two devices at same time.

5.  Conveniently use at home/office.

6.  High power, small volume, light and portable.

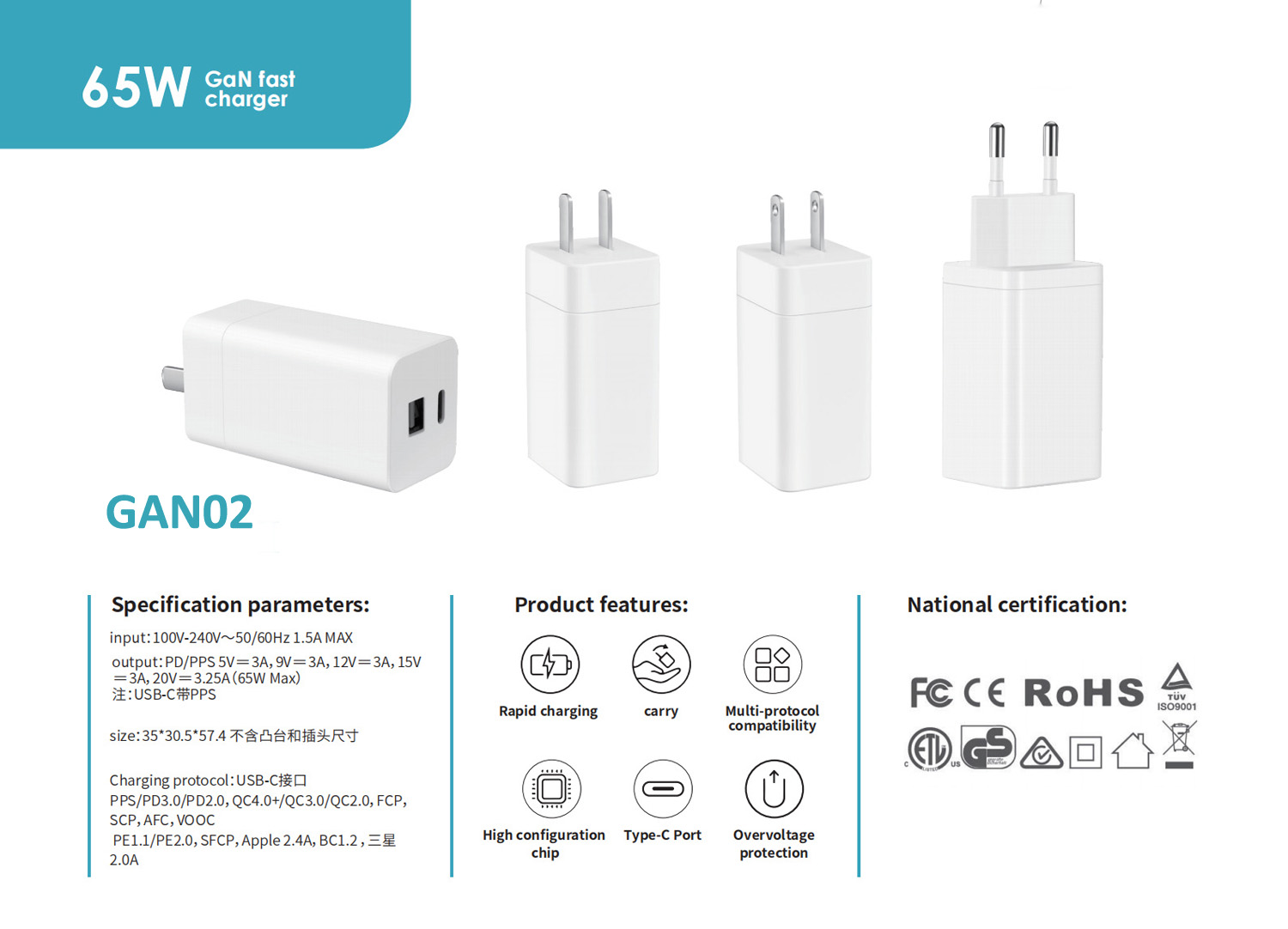

Charger Parameter:


ModelInputOutputCertification

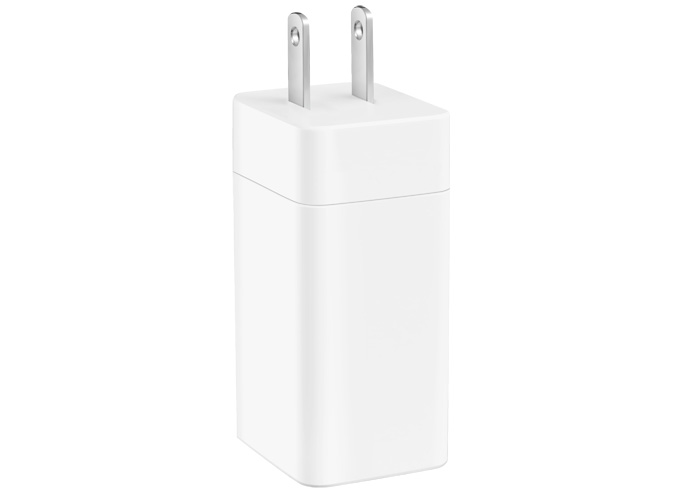

GaN02-US

AC100-240V 50/60Hz

1.5A(Max)

USB-C: 65W
USB-A: 36W
USB-A+USB-C: 45W+18W(63W)
65W:5.0V 3.0A,9.0V 3.0A,12V 3.0A, 15V 3.0A, 20V   3.25A(65.0W)
45W: 5.0V   3.0A,9.0V 3.0A,12V 3.0A, 15V 3.0A, 20V 2.25A(45.0W)
36W:5.0V 3.0A,9.0V 3.0A,12V 3.0A,  20V 1.8A(36.0W)
18W: 5.0V 3.0A,9.0V 2.0A,12V 1.5A(18W)

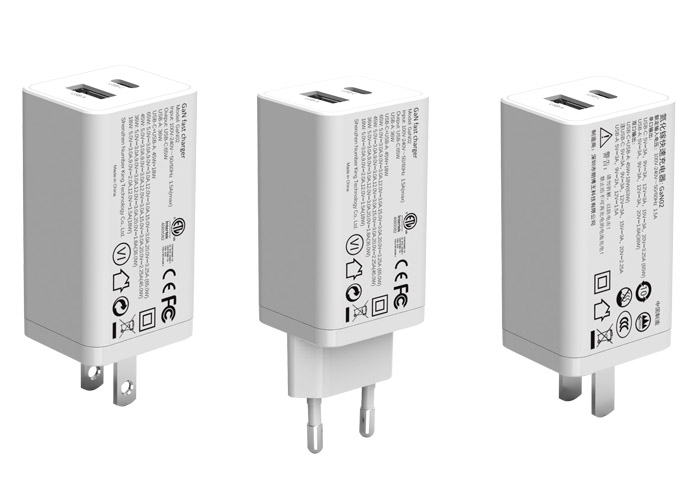

GaN02 Series

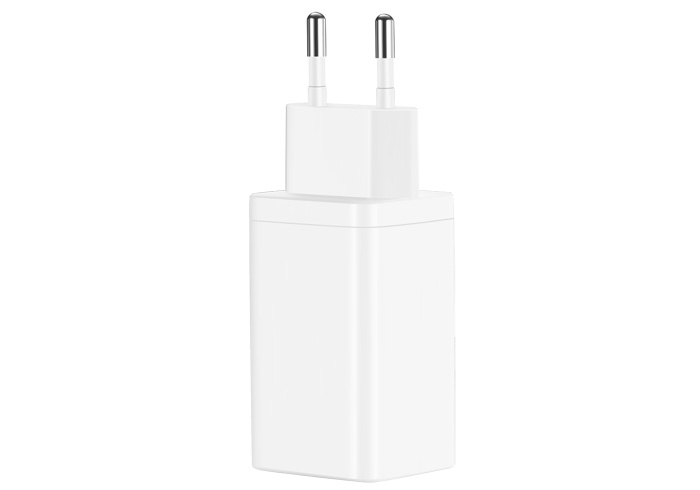

GaN02-EU
GaN02-CNSingle port   output:
 USB-C:   5V3A,9V3A,12V3A,15V3A,20V 3.25A(65W)
USB-A:5V3A,9V3A,12V3A,20V1.8A(36W)
Two ports output:
USB-C+USB-A:  45W+18W(63W)
(USB-C 5V3A,9V3A,12V3A.15V3A.20V2.25A    USB-A : 5V3A,9V2A,12V1.5A)
GaN02 Series
The whole unit includes GaN02 US/EU/CN charger *1pc
