GaN01 Series

GaN Fast Charger

Model: GaN01

Speed Charging: For All Device Anytime, Anywhere

Feature:

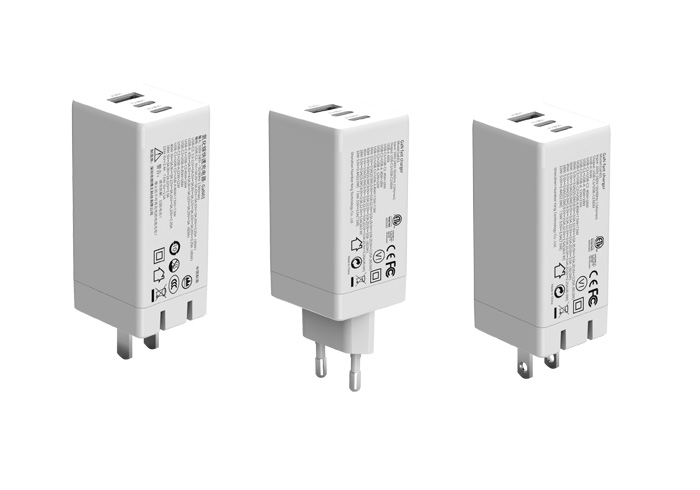

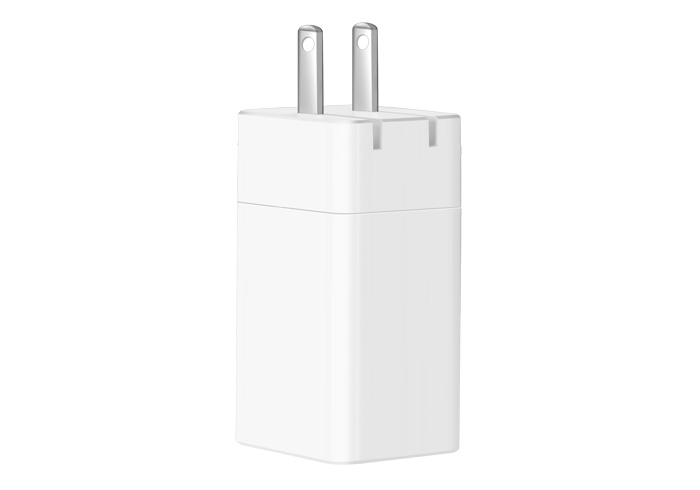

1. US/EU/CN plug available : US plug foldable.

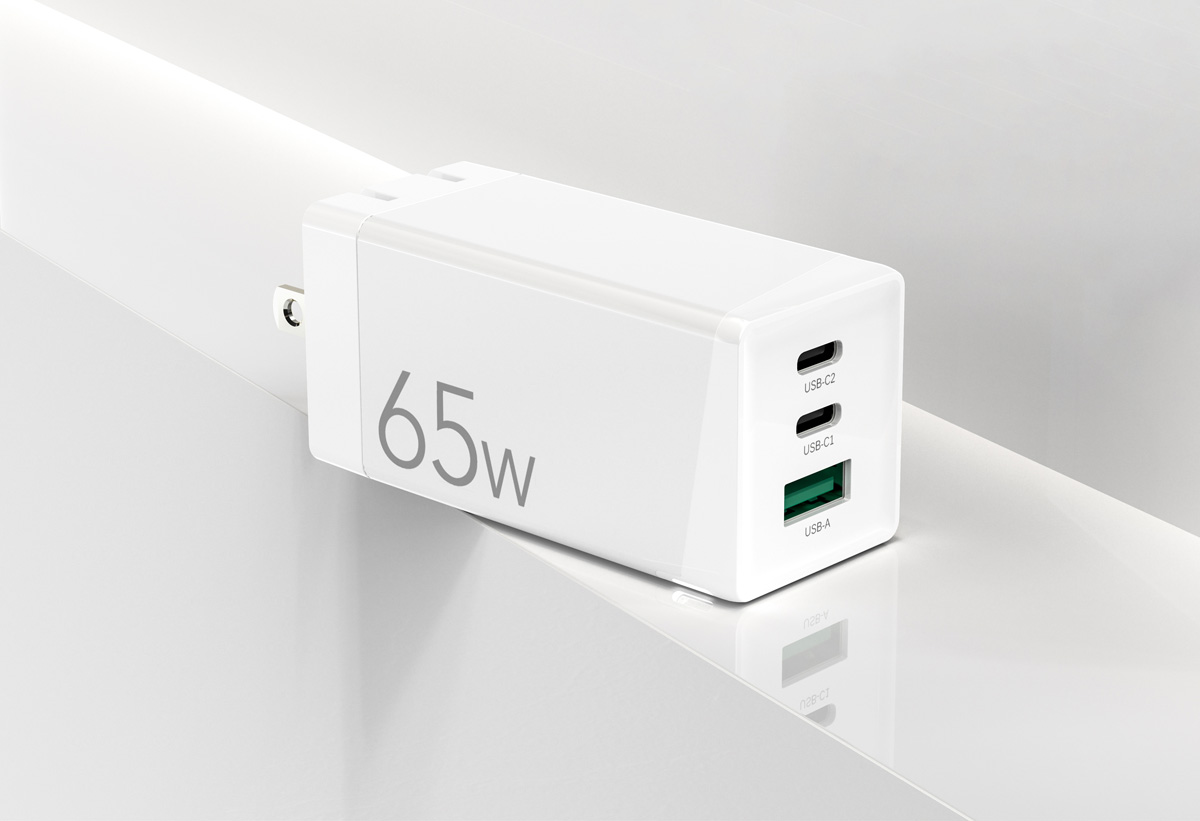

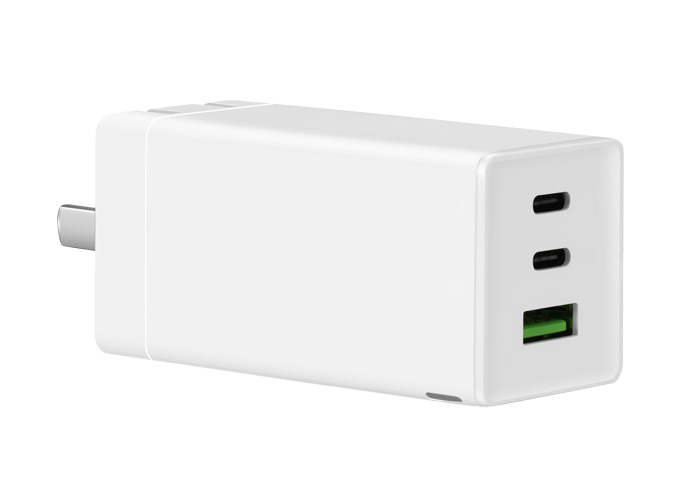

2. 3 ports output 2C 1A

3. Providing a whole new experience in charging any devices, with latest GaN Technology, extraordinary compatibility, dual USB-C port, one USB-A port

4. All together in one tiny case, fueled by enormous 65W power unit, gadded by patent safety controller chip.

5. Single port output 65W MAX, with this power it can meet the charging demand of most laptops in the market like MacBook,Dell,Lenovo.....;

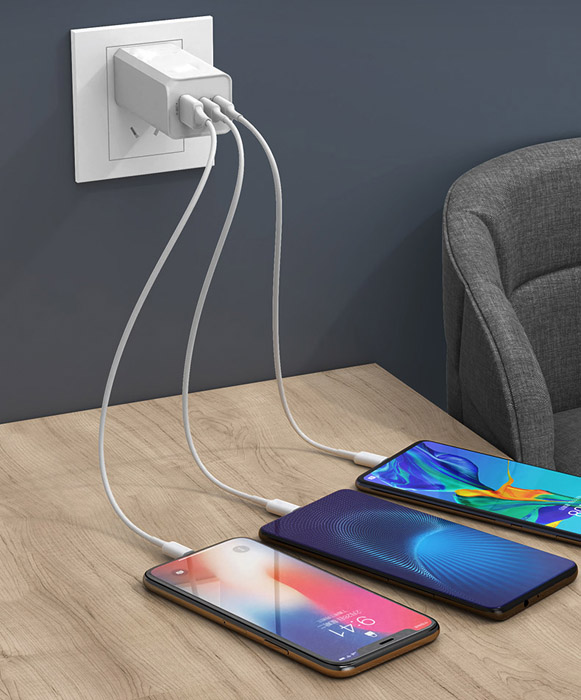

6. When two output/three output working ,USB-C1 output power can reach 45W.

7. Support multiple protocols PD3.0/PD2.0/PPS/QC4.0/QC3.0/QC2.0/FCP/SCP/AFC/PE2.0/SFCP...

8. High power, small size,light and portable.

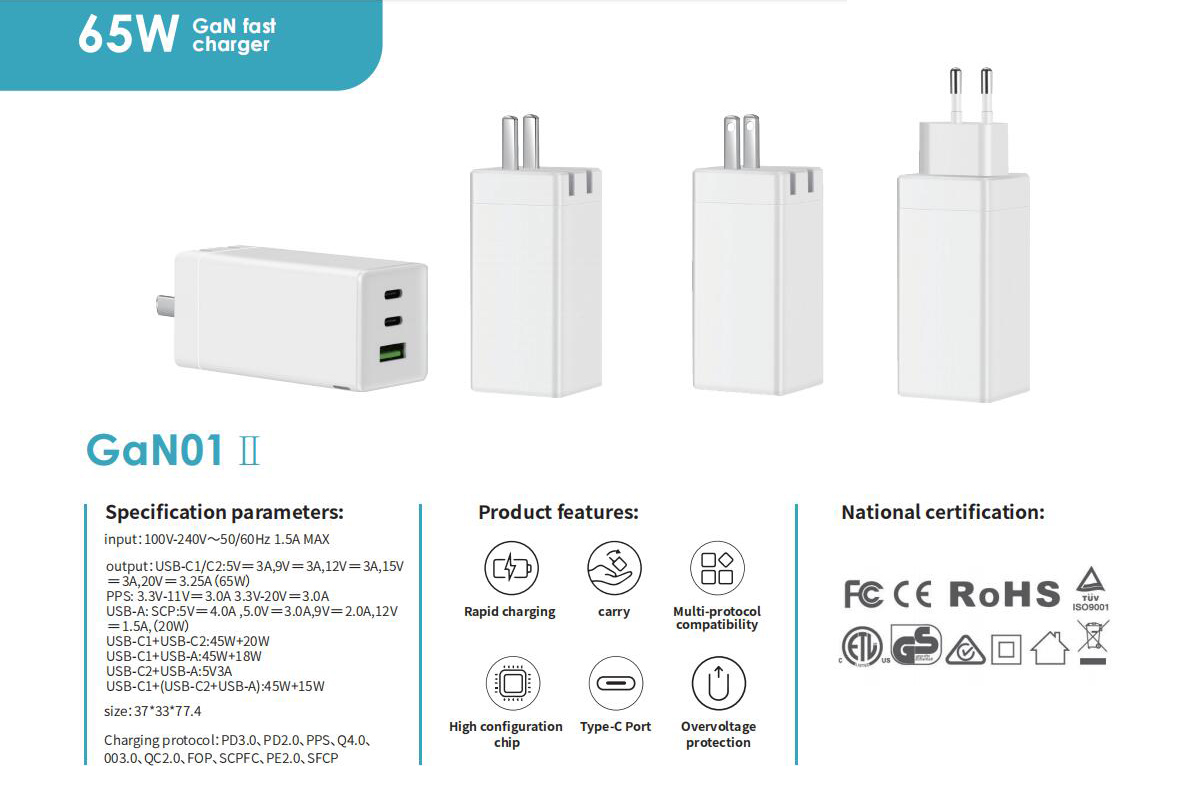

Specification:

Model	Input	Output	Certification
GaN01-US	INPUT:AC100-240V  50/60Hz     1.5A(Max)	OUTPUT(1A2C)                                                                                 USB-C1/C2:5V3A,9V3A,12V3A,15V3A,20V3.25A(65W) USB-A:3.4V-5.5V/5A,5V3A,9V3A,12V3A,20V3A USB-C1+USB-C2: 45W+18W(63W) USB-C1+USB-A:  45W+18W(63W) USB-C2+USB-A: 5V4.8A(24W) USB-C1+(USB-C2+USB-A): 45W+15W(60W)

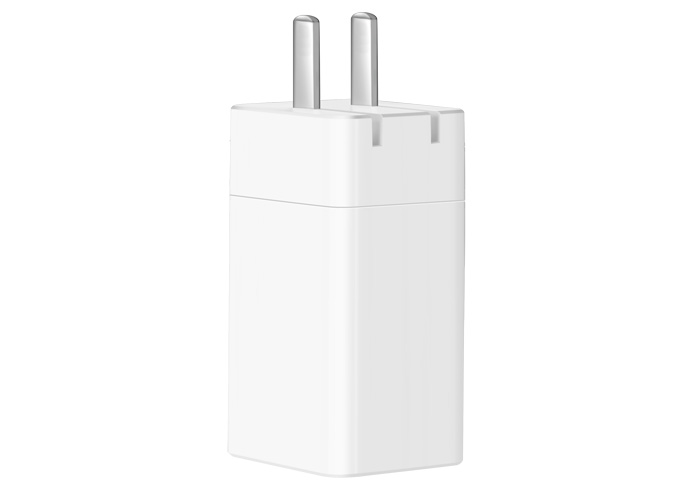

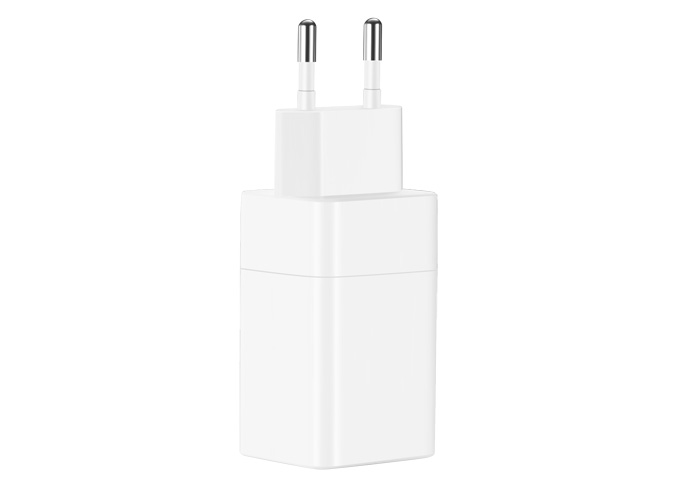

GaN01-EU
GaN01-CN		USB-C1:5V3A,9V3A,12V3A,15V3A,20V3.25A(65W)                      USB-C2:3.3-11V/5A,5V3A,9V3A,12V3A,15V3A,20V 3.25A(65W)    USB-A:4.5V/5A,5V4.5A,9V3A,12V3A,20V3A(60W) USB-C1+USB-C2: 45W+18W USB-C1+USB-A:  45W+18W USB-C2+USB-A: 12V12A USB-C1+(USB-C2+USB-A): 45W+7.5W+7.5W                                    45W:   5V3A,9V3A,12V3A,15V3A,20V2.25V                                            18W:5V3A,9V2A,12V1.5A                                                                     12W:5V2.4A,                           7.5W: 5V1.5A
The whole unit includes GaN01 US/EU/CN charger *1pc
